Chroma, Fluorescence, Fluorochrome

CFP

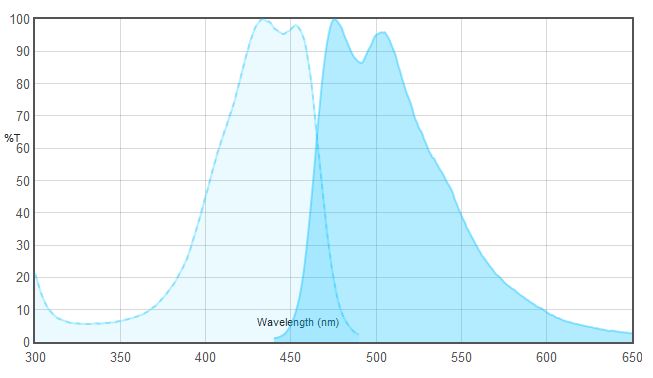

Spectrum Chart

Excitation (㎚) Emission (㎚)
433 475

Recommended Filter set

  • 일반 형광 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
39001 435/20
(425~445)		 455 (LP) 480/30
(465~495)		 Narrow Excitation band,
Bandpass Emission
49001 436/20
(426~446)		 455 (LP) 480/40
(460~500)		 Narrow Excitation band,
Bandpass Emission

  • 레이저 Lighting source

Filter Model No. Excitation filter (㎚) Dichroic mirror (㎚) Emission filter (㎚) Remarks
49902 436/20
(426~446)		 442 (LP) 480/40
(460~500)		 For use with laser between 430-445㎚

Narrow Excitation band,
Bandpass Emission
49903 436/20
(426~4460)		 442 (LP) 500/40
(480~520)		 For use with laser between 430-445㎚

Narrow Excitation band,
Bandpass Emission

Information

Cyan Fluorescent Protein (CFP) is a versatile biological marker for monitoring physiological processes, visualizing protein localization, and detecting transgenic expression in vivo. CFP can be excited by the 405 ㎚laser line and is optimally detected at 485 ㎚.

시안 형광 단백질 (Cyan Fluorescent Protein, CFP)은 생리 학적 과정을 모니터링하고, 단백질의 위치를 시각화하며, 생체 내에서 유전자 변형 (transgenic expression)을 검출하는 다목적 생물학적 표지자로서 CFP는 405 nm 레이저 라인에 의해 여기 될 수 있으며 485 ㎚에서 최적으로 검출됩니다.
