Chroma Filter 49013

49013 Spectrum

Filters	Type
ET445/30x	EX
T470lpxr	BS
ET510lp	EM

49013 필터에 적합한 형광색소

• Atto 425
• mTFP1

49013 Spec

• Typical Application(s) : Widefield Microscopy
• Coating : Sputter/Hard Coated
• Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
• Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

Chroma Filter 49024

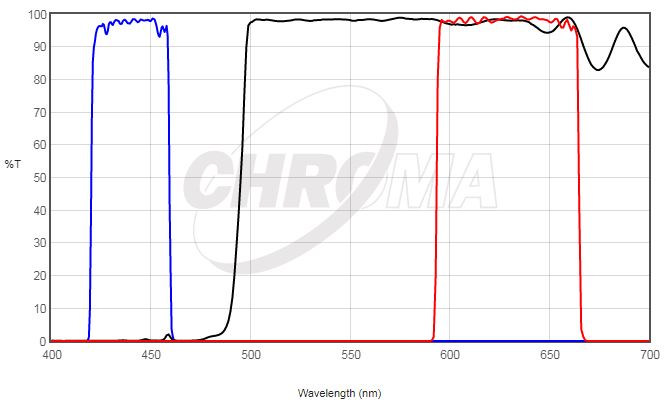

49024 Spectrum

Filters	Type
ET440/40x	EX
T495lpxr	BS
ET630/75m	EM

49024 필터에 적합한 형광색소

• Acridine Orange + RNA
• DiA
• mKeima Red
• Pulsar™ 650

49024 Spec

• Typical Application(s) : Widefield Microscopy
• Coating : Sputter/Hard Coated
• Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
• Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

Chroma Filter 49012

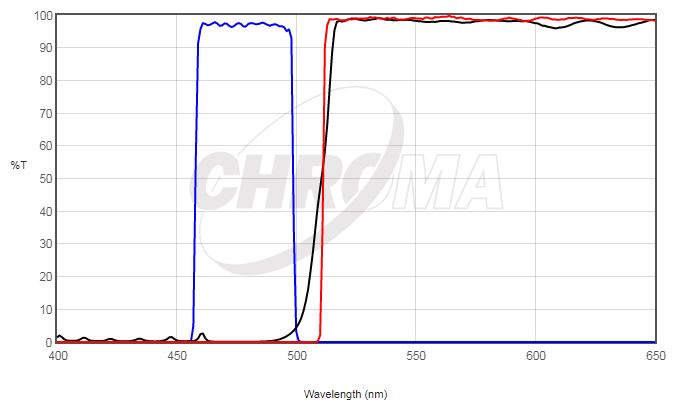

49012 Spectrum

Filters	Type
ET480/40x	EX
T510pxrxt	BS
ET510lp	EM

– Filter set for GFP/FITC Longpass

• Main Fluorochromes :  FITC

Excitation (㎚)	Emission (㎚)
490	525

주요 형광 색소(Fluorochromes)와 스펙트럼 비교

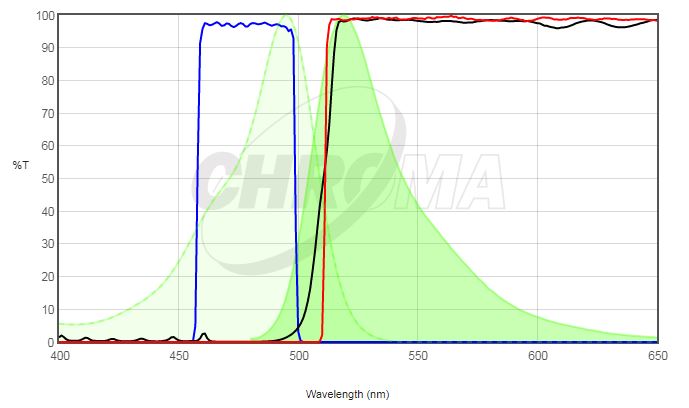

 * FITC VS 49012

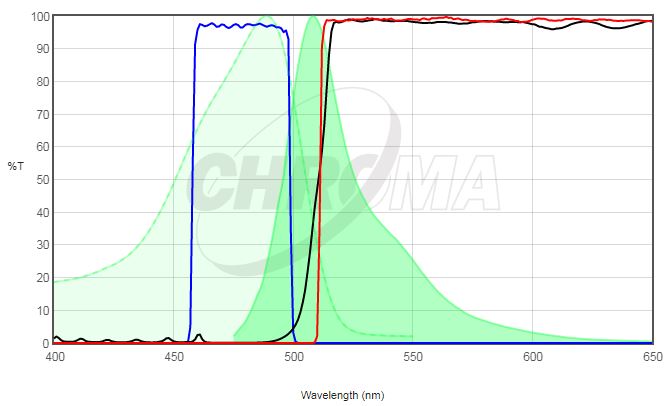

* GFP VS 49012

49012 필터에 적합한 형광색소

• Acridine Orange + DNA and RNA
• JC-1 non-ratiometric

49012 Spec

• Typical Application(s) : Widefield Microscopy
• Coating : Sputter/Hard Coated
• Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
• Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

확인하시고자 하는 시약 및 필터는 자주 사용이 되지 않아 필터의 정보가 아직 준비가 되어 있지 않습니다. 하기의 연락처로 직접 문의 주시면 상담 드릴 수 있도록 하겠습니다.

• Tel : 02-3473-4188~9
• E-mail : jhjin@jnoptic.com

상담을 위하여 몇 가지 사항을 체크하여 주시면 보다 빠르게 확인하여 추천을 드릴 수가 있습니다.

[ 필터 주문 시 확인 사항 ]

->하기의 사항 중 확인 가능하신 것만 체크하여 알려주시기 바랍니다.

• 사용하고자 하는 형광시약 또는 EX / EM 파장대
• 현미경 및 장비의 모델명
• 조명장치의 종류 (ex : mercury, xenon, laser 등)

Chroma Filter 49015

49015 Spectrum

Filters	Type
ET605/50x	EX
T635lpxr	BS
ET670/50m	EM

– Filter set for Alexa Fluor 633

• Main Fluorochromes :  AlexaFluor 633

Excitation (㎚)	Emission (㎚)
632	647

Spectrum Comparison Fluor and 49015

Best with these fluorochromes

• Alexa Fluor 633™
• Allophycocyanin (APC)
• Atto 633
• CAL Fluor® Red 635
• DyLight 633

49015 Spec

• Typical Application(s) : Widefield Microscopy
• Coating : Sputter/Hard Coated
• Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter
• Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes

---

JNOPTIC Filter 49014

49014 Spectrum

Filters	Type
ET530/30x	EX
T550lpxr	BS
ET575/40m	EM

– Filter set for mKO/mOrange

• Main Fluorochromes :  AlexaFluor 532

Excitation (㎚)	Emission (㎚)
531	554

Spectrum Comparison Fluor and 49014

Best with these fluorochromes

• Alexa Fluor 532™
• CAL Fluor® Gold 540
• CAL Fluor® Orange 560
• Cy3™
• HEX,SE
• mKO
• mOrange2
• Quasar® 570
• R-phycoerythrin

49014 Spec

• Typical Application(s) : Widefield Microscopy
• Coating : Sputter/Hard Coated
• Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter
• Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes

Chroma Filter 49906

49906 Spectrum

Filters	Type
ZET514/10x	EX
ZT514rdc	BS
ET575/50m	EM

– Filter set of 514nm Laser Bandpass Set for mKO, mOrange2

For use with lasers between 511-517㎚

• Main Fluorochromes :  AlexaFluor 514

Excitation (㎚)	Emission (㎚)
517	539

Spectrum Comparison Fluor and 49906

49906 Spec

• Typical Application(s) : Laser (Non-TIRF)
• Coating : Sputter/Hard Coated
• Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter
• Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes
