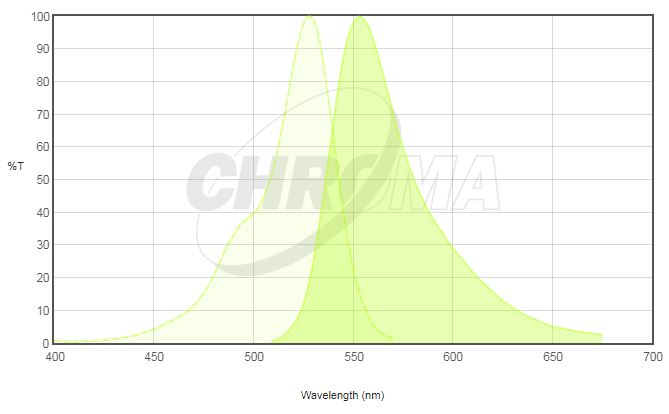

Spectrum Chart
| Excitation (㎚) | Emission (㎚) |
| 531 | 554 |
Recommended Filter set
-
일반 형광 Lighting source 사용시
| Filter Model No. | Excitation filter (㎚) | Dichroic mirror (㎚) | Emission filter (㎚) | Remarks |
| 49014 | 530/30 (515~545) |
550 (LP) | 575/40 (555~595) |
Medium Excitation band, Bandpass Emission |
-
레이저 Lighting source 사용시
| Filter Model No. | Excitation filter (㎚) | Dichroic mirror (㎚) | Emission filter (㎚) | Remarks |
| 49906 | 514/10 (509~519) |
514 (LP) | 570/50 (545~595) |
For use with laser between 511~517㎚
Narrow Excitation band, |
| 49907 | 532/10 (527~537) |
532 (LP) | 575/50 (550~600) |
For use with laser between 529~535㎚
Narrow Excitation band, |
