260607_Photonics, Chroma, Filter, Fluorescence, JNOPTIC

JNO-G(L)

JNOPTIC Filter JNO-G(L)

Download Catalog _ JNO-G(L)

– Filter set for TRITC / Cy3 Longpass
– Chroma Filter Model No. : 19004

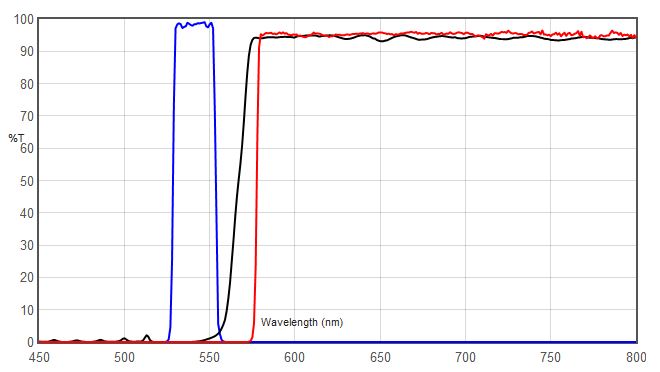

JNO-G(L) Spectrum

JNO-G(L)
Standard Green Excitaion filter (Long Pass type)
FiltersType
AT540/25xEX
AT565DCBS
AT575lpEM

주요 형광 색소(Fluorochromes)와 스펙트럼 비교

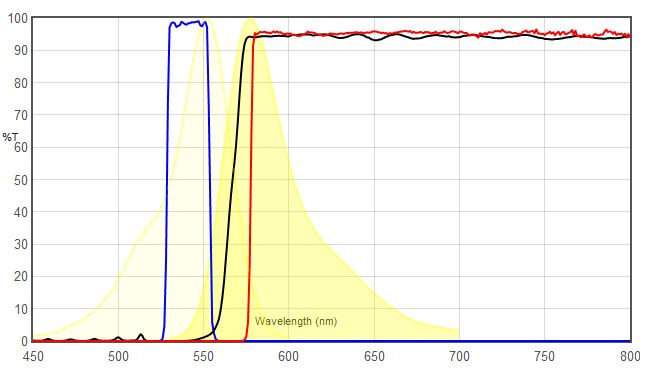

* TRITC VS JNO-G(L)

JNO-G(L)필터를 이용한 Sample Image 촬영

JNO-G(L)를 사용하여 보는 TRITC 형광 이미지
Filter Set : JNO-G(L)
Camera : AcquCAM 23GR2
C-mount adapter : 1x
Lens : UPLAPO40X
Sample : bovine pulmonary artery endothelial cell, BPAEC
JNO-G(L)를 사용하여 보는 TRITC 형광 이미지
Filter Set : JNO-G(L)
Camera : AcquCAM 5G
C-mount adapter : 1x
Lens : UPLAPO40X
Sample : bovine pulmonary artery endothelial cell, BPAEC
JNO-G(L)를 사용하여 보는 TRITC 형광 이미지
Filter Set : JNO-G(L) Camera : AcquCAM 3G C-mount adapter : 1x Lens : UPLAPO40X Sample : bovine pulmonary artery endothelial cell, BPAEC

JNO-G(L)필터에 적합한 형광색소

  • TRITC
  • Cy3
  • R-phycoerythrin

JNO-G(L) Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

260607_Photonics, Chroma, Filter, Fluorescence, JNOPTIC

JNO-B(L)

JNOPTIC Filter JNO-B(L)

Download Catalog _ JNO-B(L)

– Filter set for GFP / FITC Longpass
– Chroma Filter Model No. : 19002

JNO-B(L) Spectrum

Blue Excitation, Long Pass Emission
JNO-B(L) Spectrum
FiltersType
AT480/30xEX
 AT505DCBS
AT515lpEM

주요 형광 색소(Fluorochromes)와 스펙트럼 비교

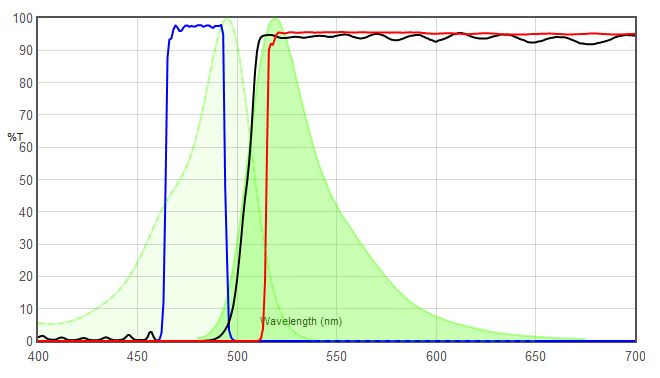

 * FITC VS JNO-B(L)

FITC VS JNO-B(L)

 * GFP VS JNO-B(L)

GFP VS JNO-B(L)
GFP VS JNO-B(L)

JNO-B(L)필터를 이용한 Sample Image 촬영

Sample : bovine pulmonary artery endothelial cell, BPAEC Filter Set : JNO-B(L) Camera : AcquCAM 23GR2 C-mount adapter : 1X Lens : UPLNAPO40X
AcquCAM 3G BX51 UPlanApo40x JNO-B(L) 1X
Sample : bovine pulmonary artery endothelial cell, BPAEC Filter Set : JNO-B(L) Camera : AcquCAM 3G C-mount adapter : 1X Lens : UPLNAPO40X
Fluorescence Image by AcquCAM 5G
Sample : bovine pulmonary artery endothelial cell, BPAEC Filter Set : JNO-B(L) Camera : AcquCAM 5G C-mount adapter : 1X Lens : UPLNAPO40X

JNO-B(L)필터에 적합한 형광색소

  • Acridine Orange + DNA and RNA
  • Auramine-rhodamine
  • JC-1 non-ratiometric

JNO-B(L) Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

260607_Photonics, Chroma, Filter, Fluorescence, JNOPTIC

JNO-U(L)

Download Catalog _ JNO-U(L)

– Filter set for UV/DAPI Longpass
– Chroma Filter Model No. : 19000

JNO-U(L) Spectrum

JNO-U(L) Spectrum
FiltersType
AT375/28xEX
AT415DCBS
AT435lpEM

주요 형광 색소(Fluorochromes)와 스펙트럼 비교

* DAPI VS JNO-U(L)

DAPI VS JNO-U(L)

JNO-U(L)필터를 이용한 Sample Image 촬영

DAPI
Sample : bovine pulmonary artery endothelial cell, BPAEC
Lens : UPLNAPO40X, C-mount adapter : 1X
Camera : AcquCAM 23GR2, Filter Set : JNO-U(L)
DAPI
Sample : bovine pulmonary artery endothelial cell, BPAEC
Lens : UPLNAPO40X, C-mount adapter : 1X
Camera : AcquCAM 23S2, Filter Set : JNO-U(L)
DAPI
Sample : bovine pulmonary artery endothelial cell, BPAEC
Lens : UPLNAPO40X, C-mount adapter : 1X
Camera : AcquCAM 3G, Filter Set : JNO-U(L)
DAPI
Sample : bovine pulmonary artery endothelial cell, BPAEC
Lens : UPLNAPO40X, C-mount adapter : 1X
Camera : AcquCAM 5G, Filter Set : JNO-U(L)

JNO-U(L)에 적합한 형광색소

  • Calcofluor White
  • DAPI

JNO-U(L) Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

260607_Photonics, Chroma, Filter, Fluorescence

JNO-R2(B)

JNOPTIC Filter  JNO-R2(B)

Download Catalog_JNO-R2(B)

– Filter set for Cy5 / AlexaFluor 647 / Draq5
– Chroma Filter Model No. : 39007

JNO-R2(B) Spectrum

JNO-R2(B)
JNO-R2(B)
FiltersType
 AT620/50xEX
AT655DCBS
AT690/50mEM

주요 형광 색소(Fluorochromes)와 스펙트럼 비교

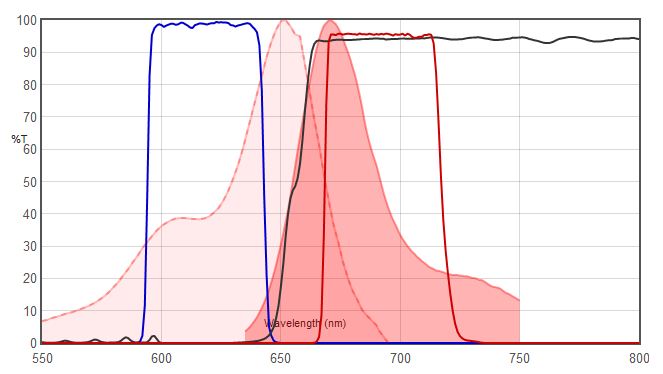

Cy5 VS JNO-R2(B)
Cy5 VS JNO-R2(B)
JNO-R2(B) VS AF647
JNO-R2(B) VS AF647
JNO-R2(B) VS Draq5
JNO-R2(B) VS Draq5

JNO-R2(B)필터에 적합한 형광색소

JNO-R2(B) Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

260607_Photonics, Chroma, Filter, Fluorescence, JNOPTIC

JNO-R1(B)

JNOPTIC Filter JNO-R1(B)

Download Catalog_JNO-R1(B)

– Filter set for Texas Red / mCherry / AlexaFluor 594
– Chroma Filter Model No. : 39010

JNO-R1(B) Spectrum

JNO-R1(B)
JNO-R1(B)
FiltersType
AT560/40xEX
AT600DCBS
AT635/60mEM

주요 형광 색소(Fluorochromes)와 스펙트럼 비교

Texas Red VS JNO-R1(B)
Texas Red VS JNO-R1(B)
mCherry VS JNO-R1(B)
mCherry VS JNO-R1(B)
Alexa Fluor 594 VS JNO-R1(B)
Alexa Fluor 594 VS JNO-R1(B)

JNO-R1(B)필터에 적합한 형광색소

JNO-R1(B) Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

260607_Photonics, Chroma, Filter, Fluorescence, JNOPTIC

JNO-G(B)

JNOPTIC Filter JNO-G(B)

Download Catalog _ JNO-G(B)

– Filter set for TRITC / Cy3 / TagRFP / AlexaFluor546
– Chroma Filter Model No. : 39004

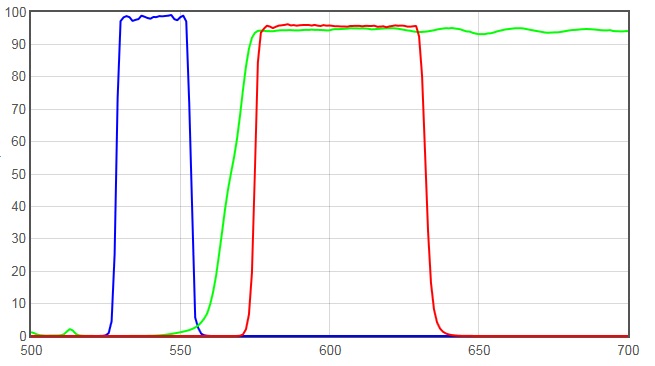

JNO-G(B) Spectrum

JNO-G(B)
Standard Green Excitaion filter (Bans Pass type)
FiltersType
AT540/25xEX
AT565DCBS
AT605/55mEM

주요 형광 색소(Fluorochromes)와 스펙트럼 비교

* TRITC VS JNO-G(B)

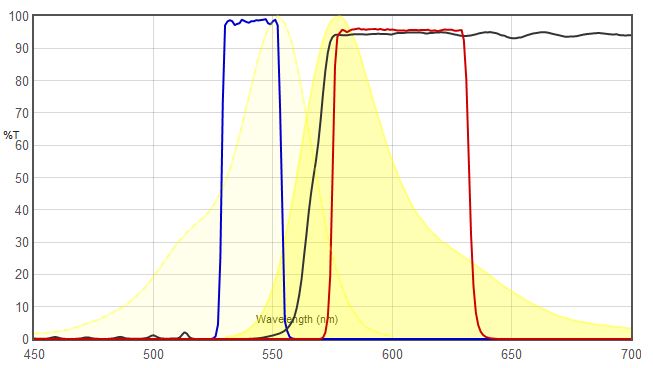

TRITC VS JNO-G(B) Spetctrum Data
TRITC에 사용했을때 JNO-G(B)

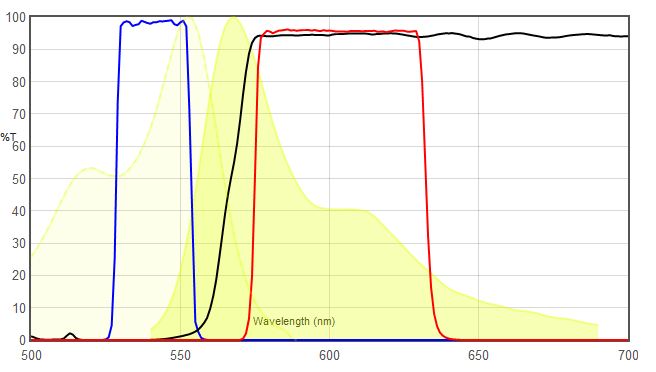

 * Cy3 VS JNO-G(B)

 * AlexaFluor546 VS JNO-G(B)

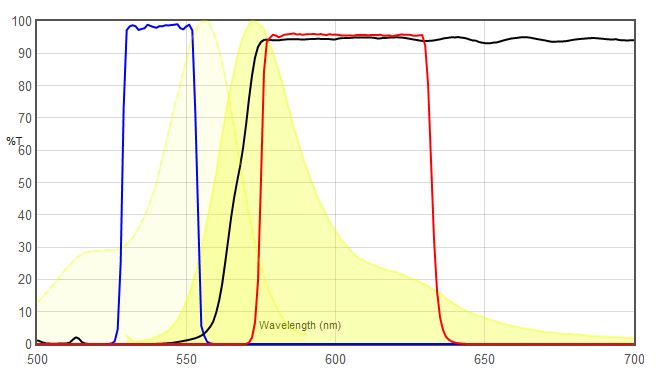

JNO-G(B) VS AF594
AF594에 사용되는 JNO-G(B)의 스펙트럼 비교

JNO-G(B)필터를 이용한 Sample Image 촬영

JNO-G(B)를 사용하여 보는 TRITC 형광 이미지
Filter Set : JNO-G(B)
Camera : AcquCAM 3G
C-mount adapter : 1x
Lens : UPLAPO20X
Sample : bovine pulmonary artery endothelial cell, BPAEC
대체 텍스트
Filter Set : JNO-G(B)
Camera : AcquCAM 5G
C-mount adapter : 1x
Lens : UPLAPO40X
Sample : bovine pulmonary artery endothelial cell, BPAEC
JNO-G(B)를 사용하여 보는 TRITC 형광 이미지
Filter Set : JNO-G(B)
Camera : AcquCAM 23GR2
C-mount adapter : 1x
Lens : UPLAPO20X
Sample : bovine pulmonary artery endothelial cell, BPAEC

JNO-G(B)필터에 적합한 형광색소

JNO-G(B) Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

260607_Photonics, Chroma, Filter, Fluorescence, JNOPTIC

JNO-B(B)

JNOPTIC Filter JNO-B(B)

Download Catalog _ JNO-B(B)

– Filter set for EGFP / FITC / Cy2 / AlexaFluor488
– Chroma Filter Model No. : 39002

JNO-B(B) Spectrum

FiltersType
AT480/30xEX
 AT505DCBS
AT535/40mEM

주요 형광 색소(Fluorochromes)와 스펙트럼 비교

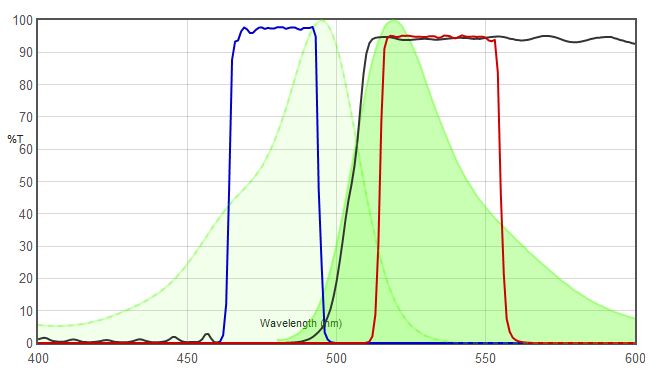

* FITC VS JNO-B(B)

FITC VS JNO-B(B)

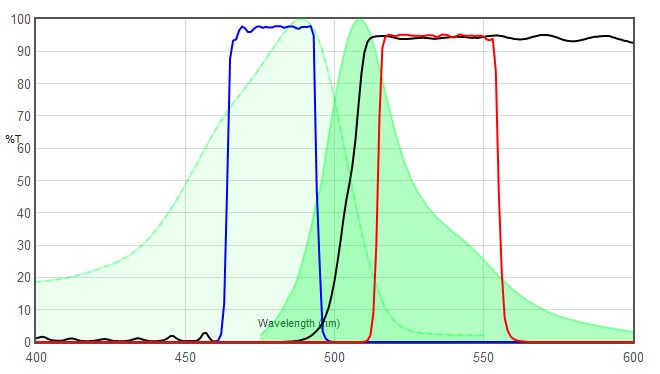

 * GFP VS JNO-B(B)

JNO-B(B) VS GFP spectrum 비교
JNO-B(B) VS GFP spectrum chart

 * AlexaFluor488 VS JNO-B(B)

JNO-B(B) VS AlexaFluor 488
JNO-B(B) VS AlexaFluor 488

JNO-B(B)필터를 이용한 Sample Image 촬영

Fluorescence Image by AcquCAM 23GR2
Sample : bovine pulmonary artery endothelial cell, BPAEC Filter Set : JNO-B(B) Camera : AcquCAM 23GR2 C-mount adapter : 1X Lens : PlanApo60xWLSM
Fluorescence Image by AcquCAM 3G
Sample : bovine pulmonary artery endothelial cell, BPAEC Filter Set : JNO-B(B) Camera : AcquCAM 3G C-mount adapter : 1X Lens : PlanApo60xWLSM
Fluorescence Image by AcquCAM 5G
Sample : bovine pulmonary artery endothelial cell, BPAEC Filter Set : JNO-B(B) Camera : AcquCAM 5G C-mount adapter : 1X Lens : UPLNAPO40X

JNO-B(B)필터에 적합한 형광색소

JNO-B(B) Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing. ( Tel. 02-3473-4188)

260607_Photonics, Chroma, Filter, Fluorescence, JNOPTIC

JNO-U(B)

Download Catalog _ JNO-U(B)

– Filter set for DAPI / Hoechst / AlexaFluor350
– Chroma Filter Model No. : 39000

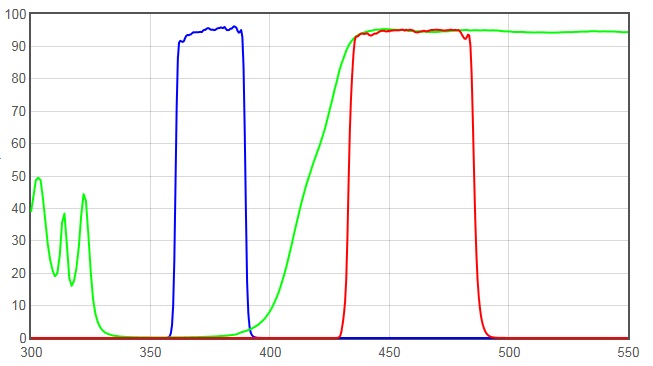

JNO-U(B) Spectrum

JNO-U(B)
Filters Type
 AT375/28x EX
AT415DC BS
 AT460/50m EM

주요 형광 색소(Fluorochromes)와 스펙트럼 비교

* DAPI VS JNO-U(B)

DAPI VS JNO-U(B)

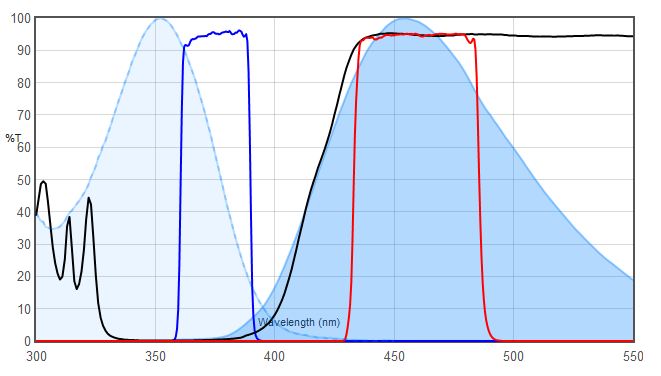

* Hoechst VS JNO-U(B)

JNO-U(B) VS Hoechst

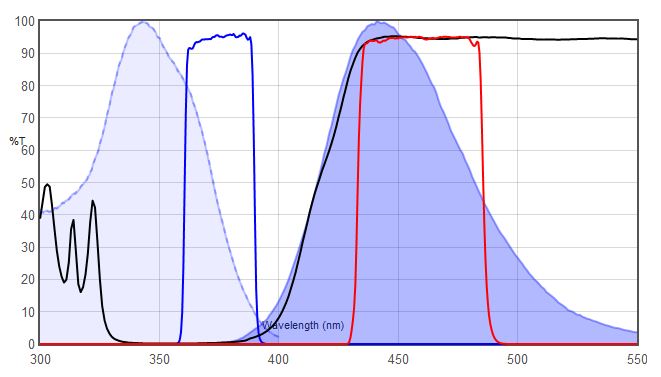

 * AlexaFluor350 VS JNO-U(B)

JNO-U(B) VS AF350

JNO-U(B)필터를 이용한 Sample Image 촬영

DAPI
Sample : bovine pulmonary artery endothelial cell, BPAEC
Camera : AcquCAM 23GR2, Filter Set : JNO-U(B)
Objective lens : UPLNAPO40X, C-mount adapter : 1X
AcquCAM 23GR2 fluorescence Image
DAPI, FITC, TRITC
Sample : bovine pulmonary artery endothelial cell, BPAEC
Camera : AcquCAM 23GR2, Filter Set : JNO-U(B),B(B),G(B)
Objective lens : UPLNAPO40X, C-mount adapter : 1X (OLYMPUS)
Above three images are merged and processed using JNO-ARM
DAPI, FITC, TRITC
Sample : bovine pulmonary artery endothelial cell, BPAEC
Camera : AcquCAM 3G, Filter Set : JNO-U(B),B(B),G(B)
Objective lens : UPLNAPO40X, C-mount adapter : 1X
Above three images are merged and processed using JNO-ARM

JNO-U(B) 필터에 적합한 형광색소

JNO-U(B) Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than *** 26x38mm, please contact us for pricing.
