Chroma Filter 49909

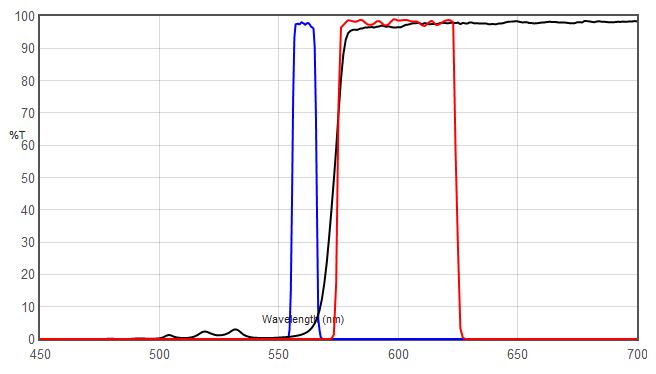

49909 Spectrum

Filters	Type
ZET561/10x	EX
ZT561rdc	BS
ET600/50m	EM

– Filter set for 561㎚ Laser Bandpass Set for TagRFP, tdTomato, AlexaFluor 546, TRITC

For use with lasers between 557-563㎚

• Main Fluorochromes :  TRITC

Excitation (㎚)	Emission (㎚)
555	580

Spectrum Comparison Fluor and 49909

49909 Spec

• Typical Application(s) : Laser (Non-TIRF)
• Coating : Sputter/Hard Coated
• Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter
• Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes

Chroma Filter 49913

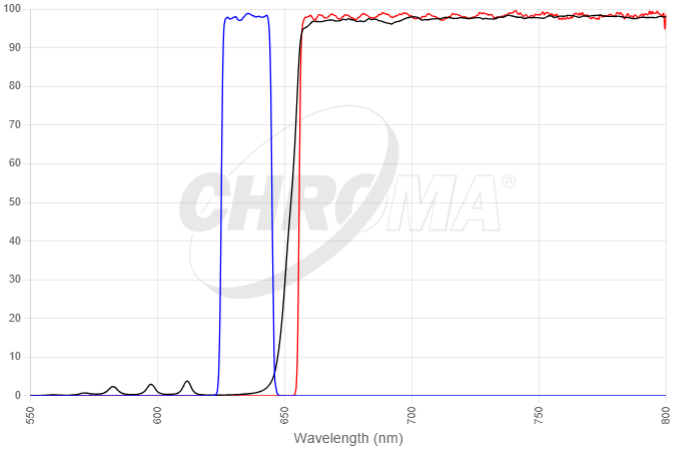

49913 Spectrum

Filters	Type
ZET635/20x	EX
ZT640rdc	BS
ET655lp	EM

– Filter set for 633-640㎚ Laser Longpass Set for AlexaFluor 647, DyLight 649, Atto 647

For use with lasers between 627-643㎚

• Main Fluorochromes :  Cy5

Excitation (㎚)	Emission (㎚)
649	670

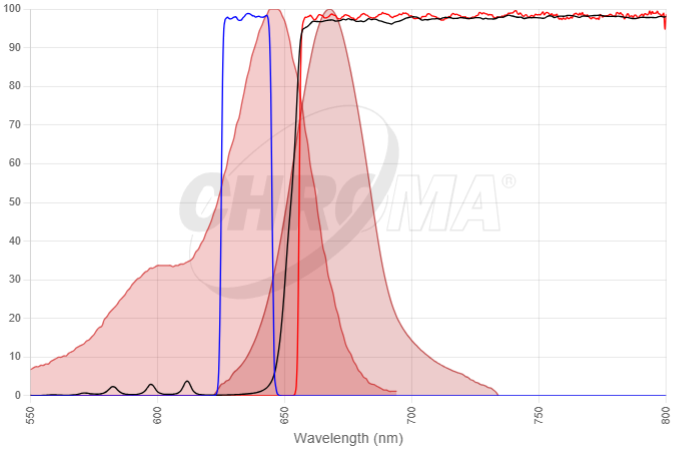

Spectrum Comparison Fluor and 49913

49913 Spec

• Typical Application(s) : Widefield Microscopy
• Coating : Sputter/Hard Coated
• Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter
• Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes

Chroma Filter 49903

49903 Spectrum

Filters	Type
ZET436/20x	EX
ZT442rdc	BS
ET500/40m	EM

– Filter set for 440㎚ Laser Bandpass Set for TFP (Teal FP)

For use with lasers between 430-445㎚

• Main Fluorochromes :  CFP

Excitation (㎚)	Emission (㎚)
433	475

Spectrum Comparison Fluor and 49903

49903 Spec

• Typical Application(s) : Laser (Non-TIRF)
• Coating : Sputter/Hard Coated
• Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter
• Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes

Chroma Filter 49914

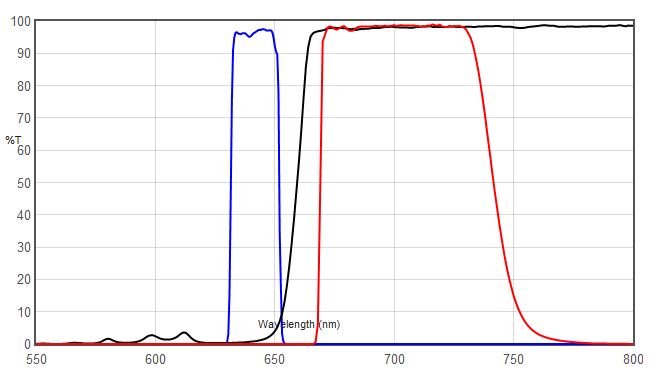

49914 Spectrum

Filters	Type
ZET642/20x	EX
ZT647rdc	BS
ET705/72m	EM

– Filter set for 640-647㎚ Laser Bandpass for Set AlexaFluor 647, DyLight647, Atto 647N

For use with lasers between 633-650㎚

• Main Fluorochromes :  Cy5

Excitation (㎚)	Emission (㎚)
649	670

Spectrum Comparison Fluor and 49914

49914 Spec

• Typical Application(s) : Widefield Microscopy
• Coating : Sputter/Hard Coated
• Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter
• Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes

Chroma Filter 49911

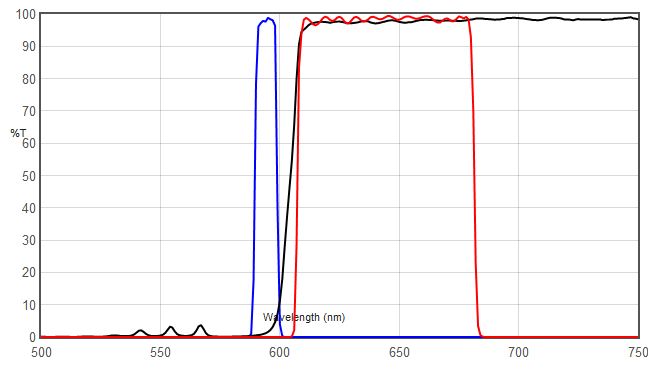

49911 Spectrum

Filters	Type
ZET594/10x	EX
ZT594rdc	BS
ET645/75m	EM

– Filter set for 594㎚ Laser Bandpass Set for mCherry, mKate2, AlexaFluor 594, Texas Red®

For use with lasers between 591-596㎚

• Main Fluorochromes :  Alexa Fluor 594

Excitation (㎚)	Emission (㎚)
590	617

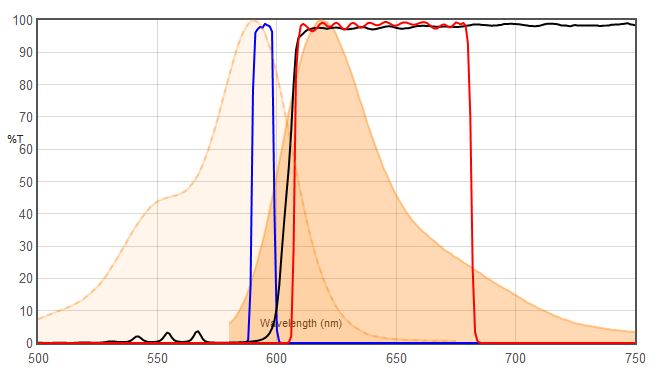

Spectrum Comparison Fluor and 49911

49911 Spec

• Typical Application(s) : Laser (Non-TIRF)
• Coating : Sputter/Hard Coated
• Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter
• Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes

Chroma Filter 49908

49908 Spectrum

Filters	Type
ZET532/10x	EX
ZT532rdc	BS
ET590/50m	EM

– Filter set for 532nm Laser Bandpass Set for TIRF applications, TagRFP, tdTomato, TRITC, Cy3, AlexaFluor 546

For use with lasers between 529-535㎚

• Main Fluorochromes :  TRITC

Excitation (㎚)	Emission (㎚)
555	580

Spectrum Comparison Fluor and 49908

49908 Spec

• Typical Application(s) : Laser (Non-TIRF)
• Coating : Sputter/Hard Coated
• Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter
• Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes

Chroma Filter 49905

49905 Spectrum

Filters	Type
ZET514/10x	EX
ZT514rdc	BS
ET545/40m	EM

– Filter set for 514㎚ Laser Bandpass Set for EYFP, Venus, Citrine, Fluo3

For use with lasers between 511-517㎚

• Main Fluorochromes : YFP

Excitation (㎚)	Emission (㎚)
514	527

Spectrum Comparison Fluor and 49905

49905 Spec

• Typical Application(s) : Laser (Non-TIRF)
• Coating : Sputter/Hard Coated
• Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter
• Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes
